D-Link CAT 6 IO (Information Outlet) – High-Performance Ethernet Wall Socket

D-Link CAT 6 IO (Information Outlet) – High-Performance Ethernet Wall Socket - Image 2

D-Link CAT 6 IO (Information Outlet) – High-Performance Ethernet Wall Socket

Name: D-Link CAT 6 IO (Information Outlet) – High-Performance Ethernet Wall Socket
SKU: 5298
Availability: InStock

Standardized plug and socket used for Ethernet connections, ensuring reliable data transmission in networking applications.

The D-Link CAT 6 IO (Information Outlet) is a modular wall-mountable LAN socket designed for seamless integration into structured cabling systems. Built to support Gigabit Ethernet, this IO unit ensures consistent signal transmission and high reliability in commercial and residential network setups.

Crafted for CAT 6 performance standards, the outlet offers low insertion loss, reduced crosstalk, and optimal contact retention. It is compatible with all standard faceplates and patch panels, making it ideal for office spaces, data centers, schools, and home networking systems. With its robust build and snap-fit design, installation is fast, secure, and tool-friendly.

Specifications

Specification	Details
Product Type	Information Outlet (IO)
Category Support	CAT 6
Brand	D-Link
Port Type	RJ45 Female
Compatible Cable	CAT 6 UTP/STP
Connector Type	110 IDC (Insulation Displacement Contact)
Mounting Style	Keystone-type (fits standard faceplates)
Performance	Up to 1 Gbps Ethernet, 250 MHz Bandwidth
Compliance	TIA/EIA-568-C.2, ISO/IEC 11801
Color	Typically White
Material	High-impact flame-retardant plastic
Application	Networking faceplates, patch panel terminations, LAN I/O
Ease of Installation	Tool-free or punch-down compatible

Features

Certified Cat 6 performance, supporting gigabit speeds over 100 m cabling with low crosstalk.
Tool-less IDC termination, compatible with both T568A/B wiring color schemes.
High-quality contact plating (50 µ" gold) for enhanced conductivity and corrosion resistance.
Built to last with ≥750 mating cycles, strong retention force, and UL‑rated housing.
Designed for easy integration into face plates or wall boxes; includes universal ID label plate.
Dust-shutter design and recessed mounting maintain aesthetic and protection when not in use.

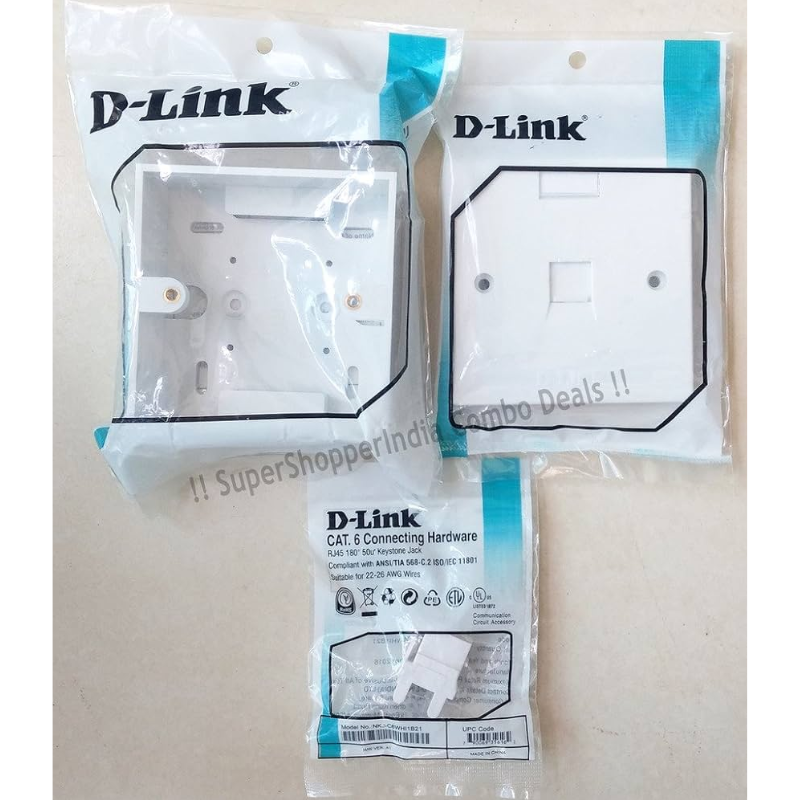

What’s in the Box ?

One D‑Link Cat6 RJ45 Keystone Jack (white or color-coded option)
Integrated faceplate adapter suitable for wall mounting
Universal label/sticker for T568A/B wiring notation
Installation instructions (single-pack); bulk packs may come with box labeling
