Colorlight X8 LED Video Wall Controller
Colorlight X8 LED Video Wall Controller - Image 2
Colorlight X8 LED Video Wall Controller - Image 3
Colorlight X8 LED Video Wall Controller - Image 4

Colorlight X8 LED Video Wall Controller

•Supports various digital signal ports, including 4×DVI and 2×SDI
•Supports input resolutions up to 1920×1200@60Hz
•Loading capacity: 5 million, maximum width/height: 8192 pixels
•Supports arbitrary switching of video sources; the input images can be spliced and scaled according to the screen resolution
•Supports five-layer displays, the location and size can be adjusted freely
•Supports 16 kinds of preset modes, the saved preset parameters can be loaded at any time according to needs
•Dual USB2.0 for high speed configuration and easy cascading among controllers
•Supports brightness and chromaticity adjustment

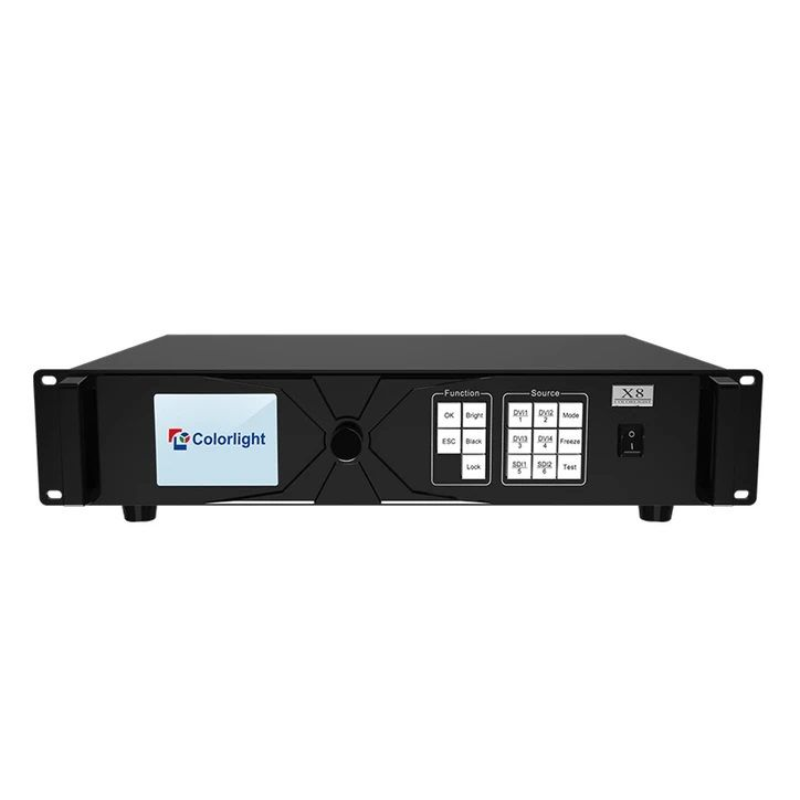

The Colorlight X8 LED Controller is a high-performance video wall controller designed for active LED display systems. Featuring 8 output ports, it delivers stable and efficient data transmission for large and medium-scale LED screens. The X8 supports multiple input signals, advanced image processing, and precise color adjustments, ensuring smooth and vivid visual presentation. This controller is ideal for applications such as broadcasting studios, staging events, control centers, and commercial advertising installations where reliable performance and excellent image quality are essential.



Specifications

Feature Specification
Type LED Video Wall Controller
Model X8
Brand Colorlight
Outputs 8
Max Load Capacity Up to 5.2 million pixels
Input Interfaces Multiple signal inputs
Control Mode Ethernet
Supported Resolutions Ultra-high resolution support
Application Active LED Video Walls
Use Case Broadcasting, Staging, Control Rooms

Features

  • Comprehensive multi-input support (DVI + SDI)

  • High-resolution output for displays up to 8192 × 4096 pixels

  • Eight GbE outputs enabling modular LED panel setups

  • Five-layer video composition, with seamless splicing & scaling

  • Robust control via USB, LAN, RS-232, front panel, and Genlock

  • Rack-friendly, broadcast-grade build quality with low-heat power consumption

What’s in the Box ?

  • 1 × Colorlight X8 Controller (2U rack unit)

  • AC power cable (region-specific)

  • USB cable for configuration and chaining

  • Genlock cable

  • Quick-start guide & warranty documentation

Additional Resources

Spec-Sheet :

Download
