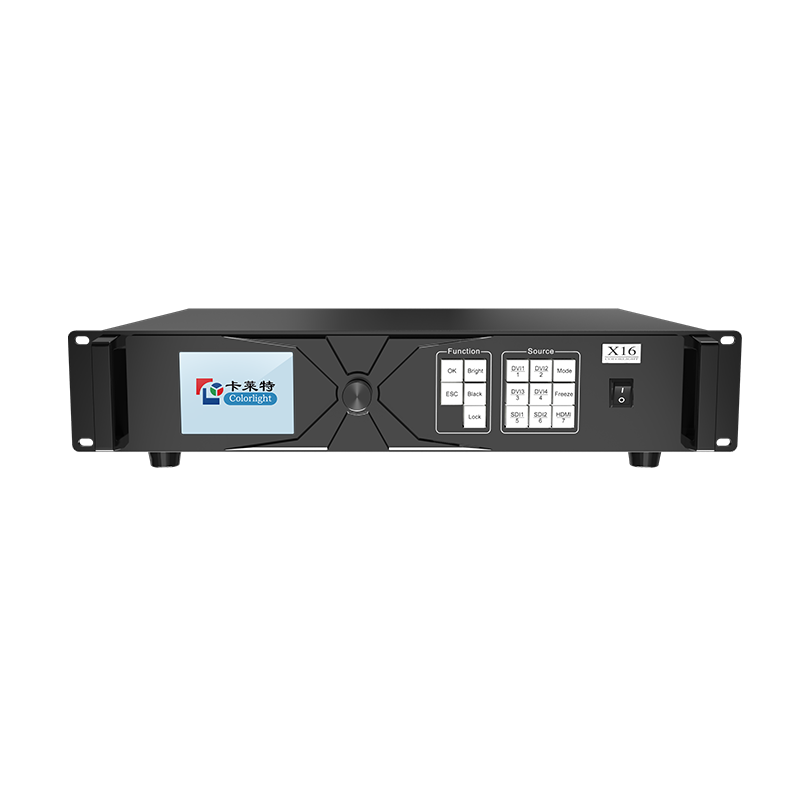

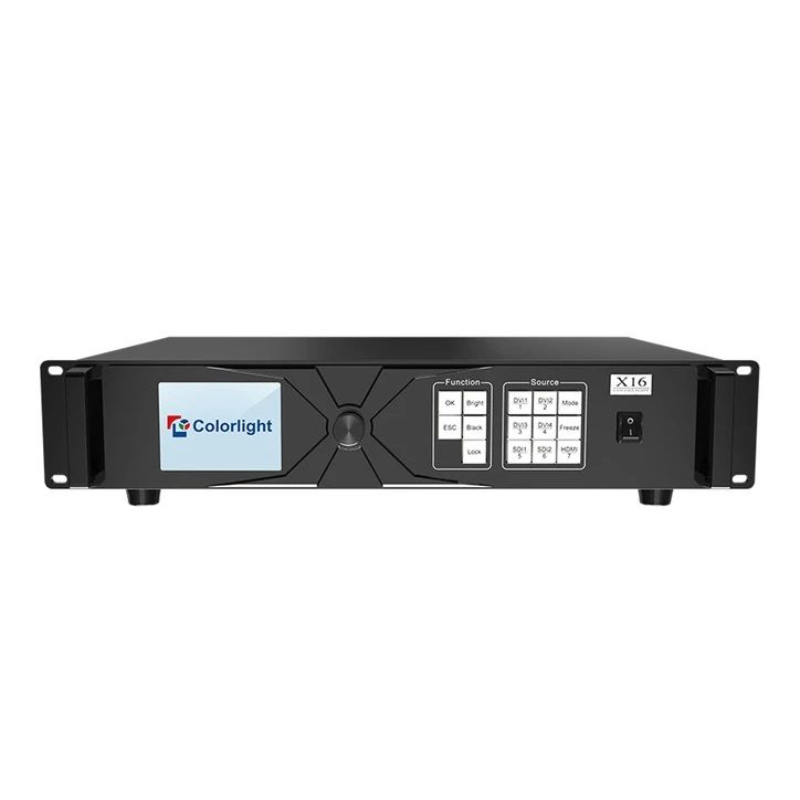

Colorlight X‑Series X16 LED Controller (16‑Output)

Name: Colorlight X‑Series X16 LED Controller (16‑Output)
SKU: 5891
Availability: InStock

•Supports various digital signal ports, including 1×HDMI 2.0, 4×DVI, 2×SDI
•Supports input resolutions up to 4096×2160@60Hz
•Loading capacity: 8.88 million, maximum width/height: 8192 pixels
•Supports arbitrary switching of video sources; the input images can be spliced and scaled according to the screen resolution
•Supports seven-pictures displays, the location and size can be adjusted freely
•Supports HDCP 2.2
•Dual USB2.0 for high speed configuration and easy cascading among controllers
•Supports brightness and chromaticity adjustments

The Colorlight X16 LED Controller is a powerful video wall controller designed for active LED display systems. With 16 output ports, it provides high-performance data transmission and precise control for large-scale LED screens. The X16 supports high resolutions, multiple signal inputs, and advanced processing features, ensuring vibrant, seamless, and stable visual performance. It is ideal for applications such as broadcasting, staging, command centers, and other professional environments where exceptional image quality and reliable control are essential.

Specifications

Feature	Specification
Type	LED Video Wall Controller
Model	X16
Brand	Colorlight
Outputs	16
Application	Active LED Video Walls
Max Load Capacity	Up to 10.4 million pixels
Input Interfaces	Multiple signal inputs
Control Mode	Ethernet
Supported Resolutions	Ultra-high resolution support
Use Case	Broadcasting, Staging, Command Centers

Features

High-resolution input handling: 4K 60 Hz support with HDCP 2.2
Multi-input flexibility: HDMI, SDI, multiple DVI ports for diverse sources
Gigabit video outputs: 16 RJ45 ports—suitable for large LED arrays
Advanced display control: 7 adjustable PIPs, seamless scaling, broadcast-quality output

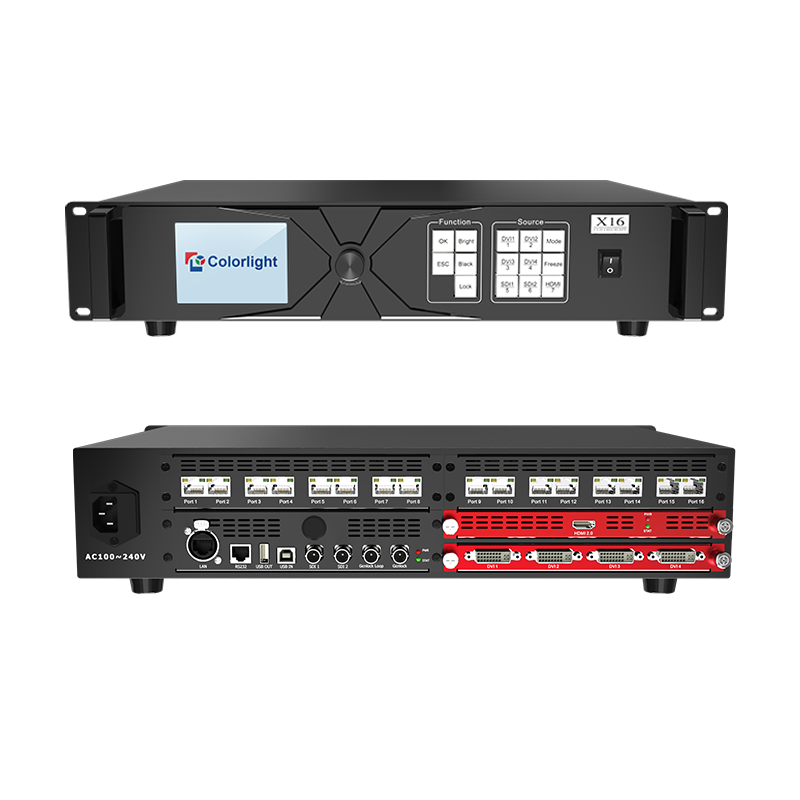

Robust control interface: front panel menu, USB config, LAN & serial control, Genlock sync
Durable build & design: 2U rackmount unit for professional AV racks
