Aten UC3430 4×1 HDMI Multi Viewer

•Records 4K @ 60 HDMI on 4 channels, with seamless transitions.
•USB-C output 4K @ 30 for live broadcast on the Internet.
•HDMI PGM / Loop-through at 4K @ 60 for preview and monitoring purposes.
•Mixes up to 4 HDMI & 1 line-level audio for adding live narration / music to the content.
•Easily control via pushbuttons, RJ-45 port, or ATEN OnAir Lite app.
•Remotely adjust AV settings switch sources, crop content, adjust layout, transitions, Chroma Key, and add logos in real-time.
•Compatible with popular streaming Zoom, Microsoft Teams, Youtube, Facebook.
•Works with major operating systems: Windows® and Mac OS.



Meeting with Multiple Input Sources

In medium to large meeting rooms, it’s common to use multiple video sources — such as two cameras and two different presentation feeds (e.g., PowerPoint slides and videos). The CAMLIVE™ PRO 4K supports up to four HDMI sources, enabling it to efficiently manage and switch between these inputs. This allows for a smooth integration of both presentation content and key participants into the video stream, eliminating awkward delays or gaps typically caused by manual switching.

Live Lecture

The CAMLIVE™ PRO 4K allows large conference rooms to stream professional grade content to global employees and stakeholders through video software. The intuitive front panel control makes it easy for you to quickly switch between multiple HDMI cameras and presentations on laptops. Produce professional content without the need to hire professionals.

The Aten UC3430 4×1 HDMI Multi Viewer is a high-performance solution designed for professional AV applications requiring multi-source monitoring on a single display. With four HDMI inputs and one HDMI output, this compact device allows seamless switching and simultaneous viewing of up to four HDMI sources in different screen layouts, such as quad view, picture-in-picture, or full screen.

Built with reliability in mind, the UC3430 is ideal for surveillance rooms, broadcast setups, classrooms, and control centers where real-time monitoring and efficient screen management are essential. With intuitive controls and superior video quality, it offers a plug-and-play experience without compromising on performance.

Specifications

Connectors
Video In 4 x HDMI Type A Female (Black)

(HDMI TMDS compatible and without the support of FRL/VRR/ALLM/eARC. Max. input video resolution up to 3840 x 2160p60 including stereo audio signals only)

USB Port USB 3.2 Gen1 Type-C Male (Black)

(USB-C to USB-C and USB-C to USB-A cable package included)

Video Output 1 x HDMI Type A Female (PGM Video, Black)
1 x HDMI Type A Female (Loop-Thru Video, Black)
Audio Inputs 1x unbalanced audio via 6.35mm TRS connectors (Black)
Audio Outputs 1x unbalanced audio via 6.35mm TRS connectors (Black)
Video Resolution Video input:
720p50, 720p60, 1080p25, 1080p30, 1080p50, 1080p60
4096 x 2160 25p/30p/60p, 3840 x 2160 25p/30p/60p , HDMI unencrypted
Audio Sampling 16‐bit PCM encoded audio at 44.1KHz and 48KHz sampling rates
Output PGM HDMI video out:
720p: 1280 x 720 25p/30p/50p/60p
1080p:1920 x 1080 24p/25p/30p/50p/60p
2160p: 3840 x 2160 24p/25p/30p/50p/60p, HDMI unencrypted

Uncompressed USB video (UVC) stream with audio(UAC)
720p: 1280 x 720 25p/30p/50p/60p
1080p:1920 x 1080 24p/25p/30p/50p/60p
2160p: 3840 x 2160 24p/25p/30p

(Uncompressed video stream is only available on USB3.1 connection)

Minimum Hardware Requirements PC/Mac:
CPU: Intel® i3 Dual Core 2.8Ghz or higher
RAM: 4GB or more
One USB-C interface or USB-A interface
Control
Contact In RS-232 connection via RJ45 interface
RS-232 Flow Control: RTS/CTS, XON/XOFF
FIFO: 64 bytes
Baud rate: 50bps ~921.6Kbps
Stop bit: 2 stop bits (9600 8N2) OR 1 stop bit (1,1.5, 2)
Parity: no parity
Signal: TxD, RxD, RTS, CTS, DTR, DSR, GND
USB Support ATEN OnAir Lite App, App downloadable from Microsoft Store
System Requirements Windows 10 and above with UVC/UAC v1.1 support
Mac OS X 10.13 and above with UVC/UAC support
OS Support OnAir Lite App for Windows10 and above only

Power Consumption DC12V:20.49W:100BTU/h

Note:
● The measurement in Watts indicates the typical power consumption of the device with no external loading.
● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.

Environmental
Humidity 0 - 80% RH, Non-Condensing
Storage Temperature -20 – 60 ºC
Operating Temperature 0 - 40 ºC
Physical Properties
Housing Metal
Weight 1.03 kg ( 2.27 lb )
Dimensions (L x W x H) 20.00 x 16.46 x 4.40 cm
(7.87 x 6.48 x 1.73 in.)
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

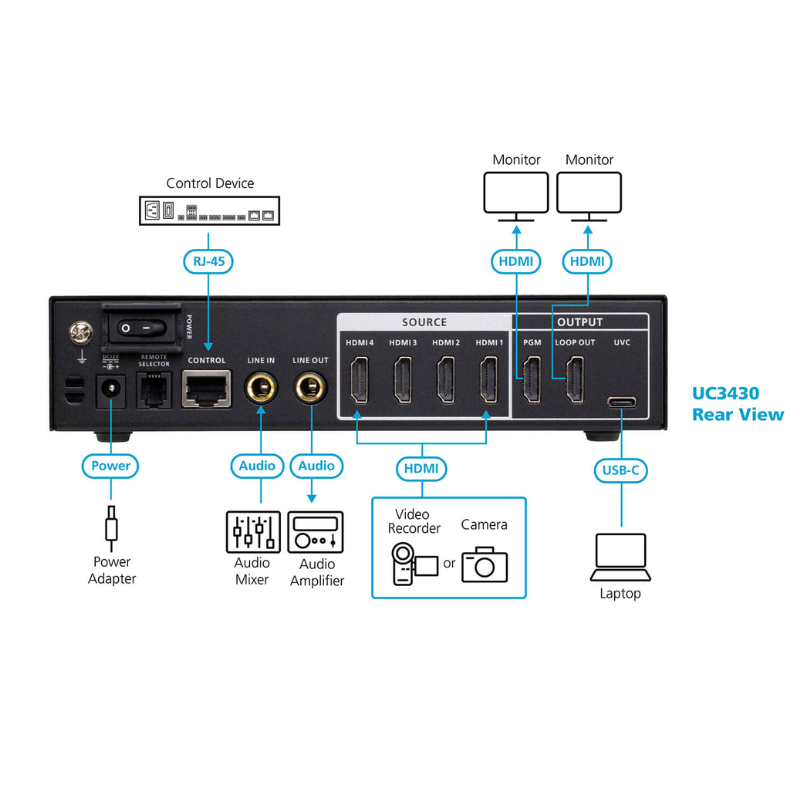

Diagram
