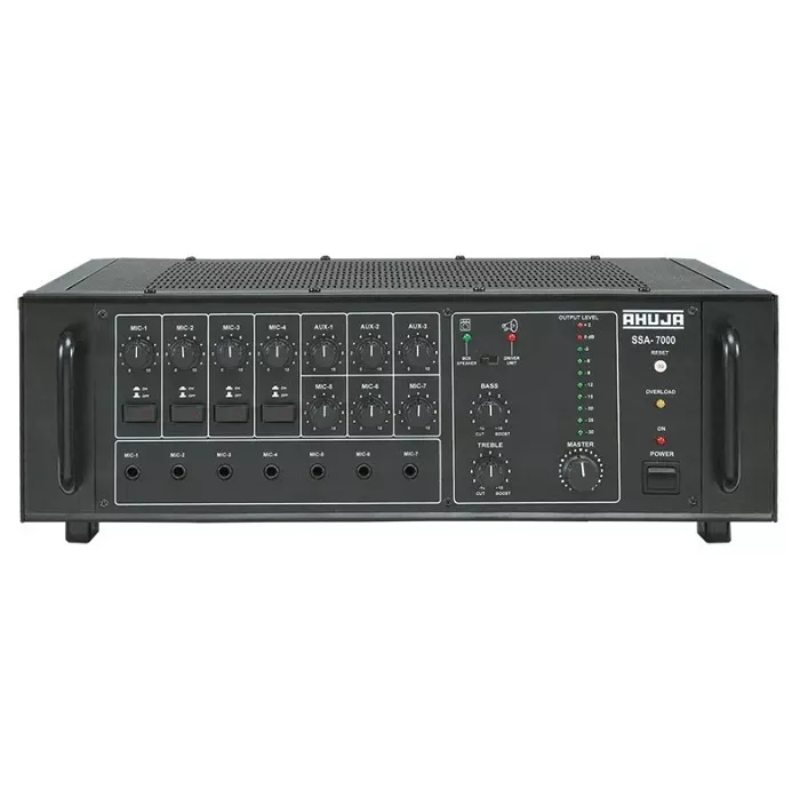

Ahuja SSA-7000 – 700W 1-Channel High-Power Amplifier Mixer
Ahuja SSA-7000 – 700W 1-Channel High-Power Amplifier Mixer - Image 2
Ahuja SSA-7000 – 700W 1-Channel High-Power Amplifier Mixer - Image 3
Ahuja SSA-7000 – 700W 1-Channel High-Power Amplifier Mixer - Image 4
,

Ahuja SSA-7000 – 700W 1-Channel High-Power Amplifier Mixer

  • SSA-7000 comes with 7 Mic & 3 Aux Inputs.
  • Preamplifier and Line Output for connecting to a Booster Amplifier and for recording the programme.
  • SSA-7000 has Line Input for connecting the output from any external mixer or permitting SSA-7000 to be used as a Booster Power Amplifier.
  • Resettable circuit breaker for protection against overload and short circuit.
  • Instant transfer to DC power (Car Battery) if AC power fails.
  • Box Speaker/Driver Unit selector switch. Bass boost defeated at Driver Unit position for safer operation of driver units.

The Ahuja SSA-7000 is a 700-watt, 1-channel heavy-duty amplifier mixer built for large-scale public address applications. Designed with exceptional power handling and reliability, it is ideal for outdoor rallies, large religious gatherings, public meetings, schools, and industrial environments.

With multiple microphone and auxiliary inputs, independent level controls, and tone adjustment features, the SSA-7000 ensures powerful and clear sound delivery even in open and noisy surroundings. The amplifier is protected by overload and short circuit protection circuits, ensuring long-lasting and safe performance.

Its rugged metal construction, advanced heat dissipation, and clean sound reproduction make the Ahuja SSA-7000 a top-tier choice for professionals who demand performance and durability from their audio systems.

Specifications

Power Output 950W Max., 700W RMS at 10% THD, 600W RMS at 5% THD, 570W RMS at 2% THD
Output Regulation ≤ 2 dB, no load to full load at 1kHz
Input Channels 7 × Mic 0.8mV/4.7kΩ, 2 × Aux 100mV/50kΩ
Frequency Response 50-15,000Hz ±3dB
Signal to Noise Ratio 60dB
Tone Controls Bass: ±10dB at 100Hz, Treble: ±10dB at 10kHz
Outputs Preamp 200mV/600Ω, Line 1V/1kΩ
Speaker Outputs 2Ω, 4Ω, 70V & 100V
Power Supply AC: 220-240V 50/60Hz DC: 36V (3×12V Car Battery)
Power Consumptiion AC: 1100VA DC: 11A
Dimensions W510 × H185 × D400 mm
Weight 38.0kg

Additional Information :



Brand

AHUJA
MODEL

Single Zone
WATTAGE

501-2500watts

What's in The Box?

  • Ahuja SSA‑7000 Mixer Amplifier Unit

  • AC Power Cable

  • DC Backup Cable (for 36 V battery input)

  • Terminal Block Connectors

  • User Manual & Warranty Card

  • Spare Fuse

Additional Resources

Operation Manual :

https://ahujaradios.com/Document/37-SSA-7000_OM_NEW_C45_GST.pdf
